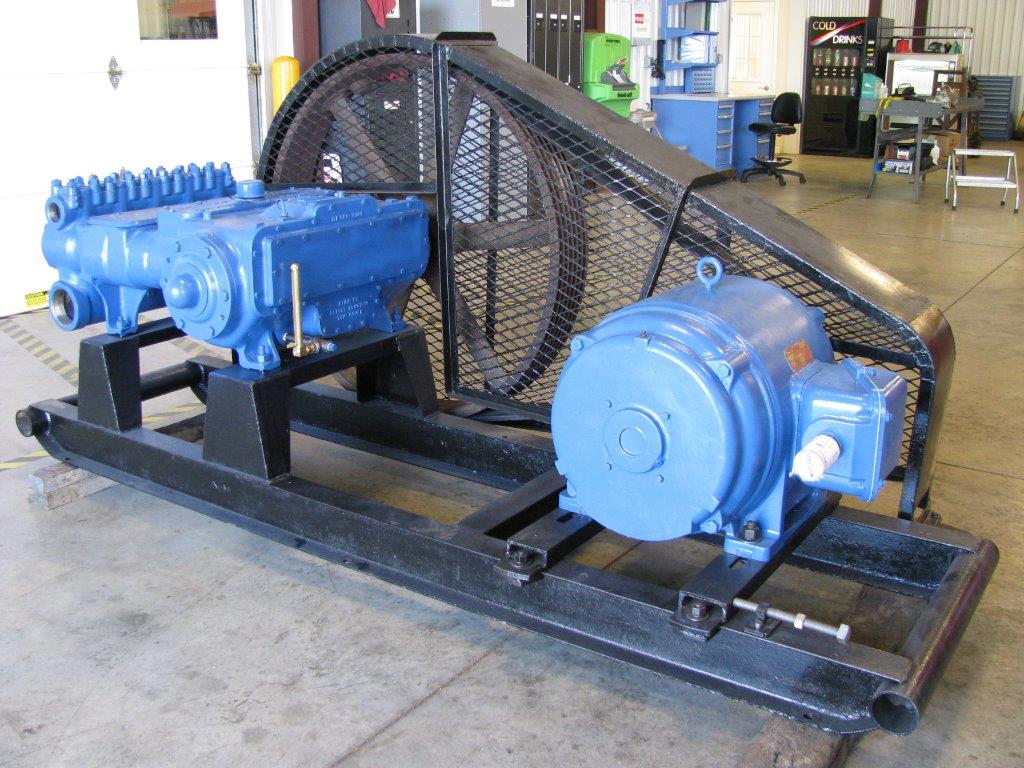

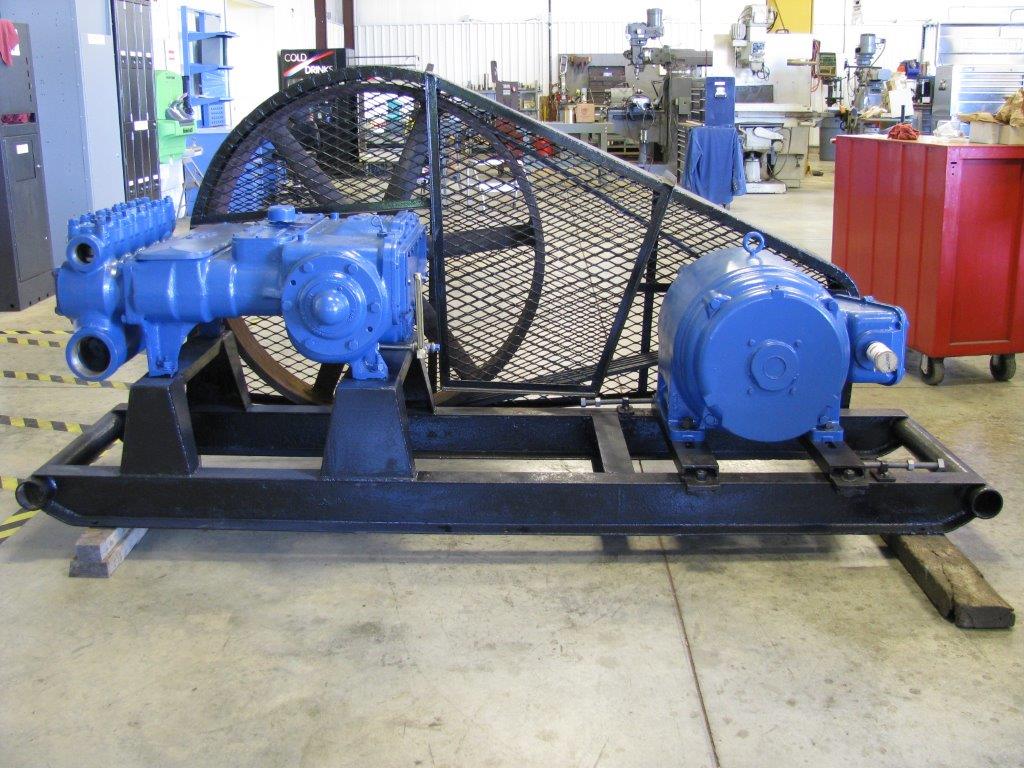

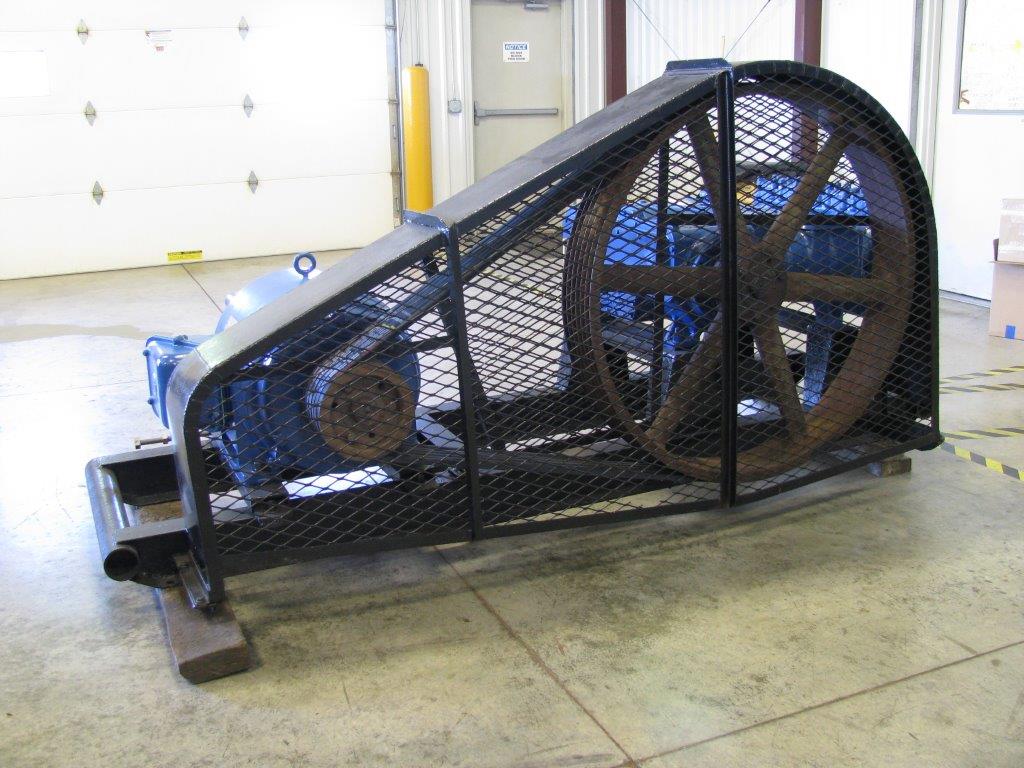

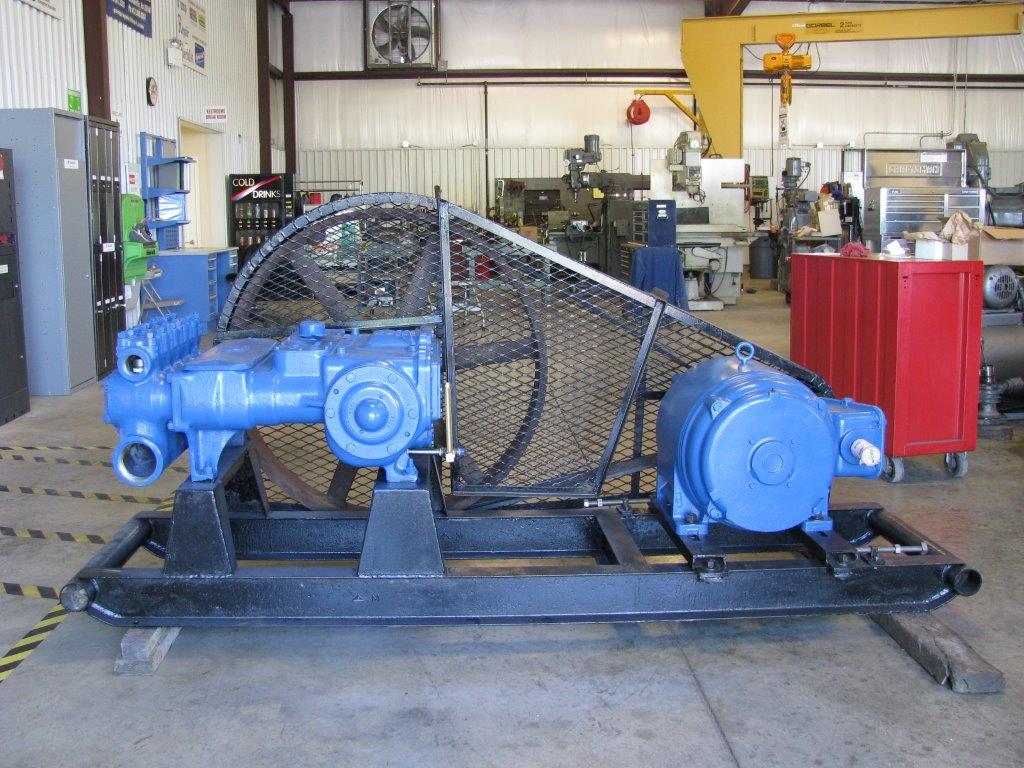

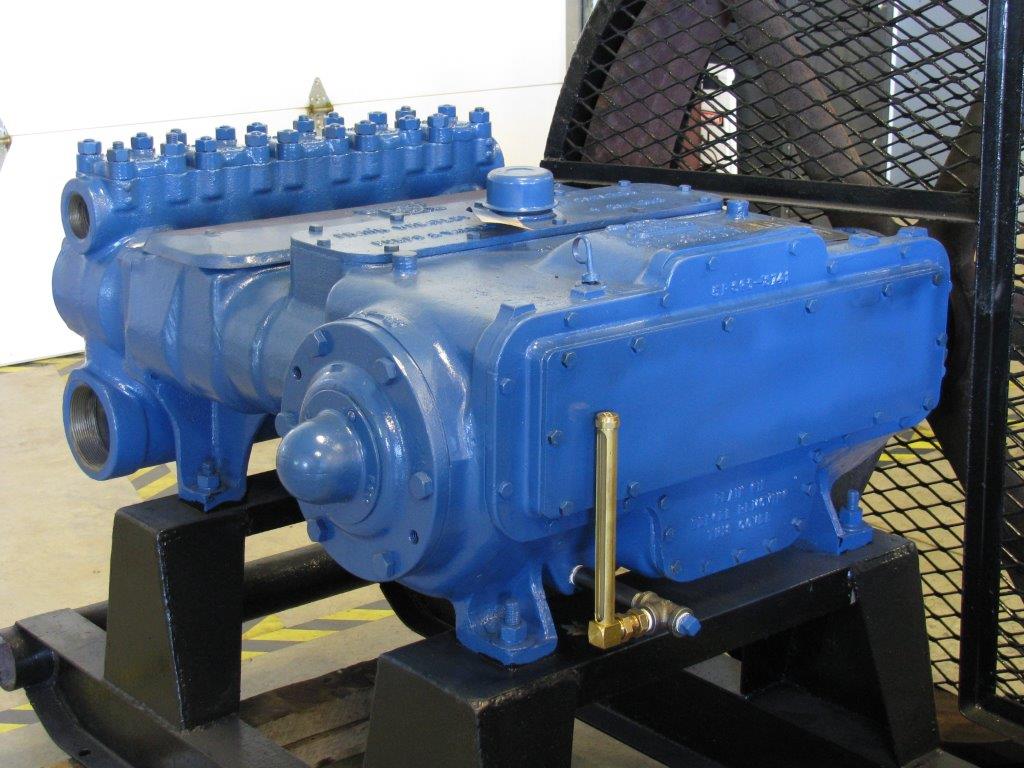

This Complete Wheatley Model No. 5P-300 Pump Package, S/N5P182 is equipped with a NAB Fluid End, Delrin Plate Valve Assemblies, 2-1/4 in. Ceramic Plungers and 838 Style Packing. The Stuffing Boxes have been bored and sleeve with 954 Bronze. Preventative Maintenance has been performed on the Power End with all the Power End Packing, Oil Seals and Gaskets being replaced. Also included is a 50 HP @ 1175 RPM, 208/230/460V Motor all mounted to a Pump Base with Adjustable Motor Base. The current Sheave arrangement is setup to produce 2,185 BPD @ 1,005 PSI max. Discharge Pressure.
Item# 1035
Spec Sheet (Click to View) 5P-300 Specs
